• Paint, solid
• Body, standard
• Bumpers, front, and rear, painted Black, includes step-pad
• Grille, Black composite, with single rectangular halogen headlamps
• Daytime running lamps
• Mirrors, outside rearview, manual folding, Black (If the van is an extended model (*G**7**), or if the van has no rear windows, then the van will get a flat right side mirror. All other vans will have a convex right side mirror)
• Glass, Solar-Ray light tinted, all windows
• Glass, rear side door and rear door window, swing-out
• Wipers, intermittent, front wet-arm with pulse washers
• License plate bracket, front
• Door, swing-out passenger side, 60/40 split

• Seats, front vinyl reclining buckets, includes head restraints
• Seating, 12-passenger (Standard on CG23406, CG33406, and CG33706 Models only. Not available on C*13406 Models.)
• Console, Base, includes open storage bin
• Floor covering, Black rubberized vinyl full length floor covering
• Steering wheel, steel sleeve column, includes theft-deterent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on
• Theft-deterrent system, PASSLock
• Air conditioning, front manual
• Air conditioning, rear (Includes (C36) Heater, rear and (KG3) Alternator, 145 amps. Standard on CG33706 Models only.
• Defogger, side window
• Sound system, ETR AM/FM stereo, includes seek-and-scan and digital clock includes front door speakers (2) and overhead rear sound bar (2) (Not available with (UE1) OnStar.)
• Headliner, cloth
• Mirror, inside rearview, manual day/night
• Visors, padded, driver and passenger side with vinyl trim
• Assist handle, front passenger
• Lighting, 2 dome lamps, includes defeat switch and door handle-activated switches

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver and right front passenger (Includes passenger side air bag deactivation switch for models with (C6P) GVWR, 8600 lbs. (3901 kg) and above. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owners Manual for more safety information.)
• Child seat anchor, located on all rear 3-passenger bench seating positions
• Door beams, steel-side
• Daytime running lamps

ENGINE, VORTEC 6000 V8 SFI (300 HP [223.8 kW] @ 4400 rpm, 360 lb.-ft. [486.6 N-m] @ 4000 rpm)

• (STD) Includes external engine oil cooler)

• Power Convenience Package
• 4 Speakers
• AM/FM radio
• Air Conditioning
• Rear air conditioning
• Power steering
• Power Windows
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front & Rear Chrome Bumpers w/Step-Pad
• Front anti-roll bar
• Front wheel independent suspension
• Passenger cancellable airbag
• Power Door Locks
• Electronic Stability Control
• Front License Plate Bracket
• Underhood Lamp
• Color-Keyed Carpeted Floor Covering
• Driver door bin
• Dual Padded Visor Vanity Mirrors w/Cloth Trim
• Reading Lamps
• Voltmeter
• 12-Passenger Seating
• 15-Passenger Seating
• 3rd row seats: bench
• 4th-Row Bench Seat
• Custom Vinyl Seat Trim
• Front Bucket Seats
• Front Reclining High-Back Bucket Seats
• Reclining Front Bucket Seats w/Inboard Armrests
• Passenger door bin
• Gray Painted w/Chrome Center Caps Wheels
• Gray Painted w/Gray Center Caps Wheels
• Variably intermittent wipers
• 3.73 Axle Ratio

• Vehicle
• Rear Door Type: Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3296
• Curb Weight - Rear (lbs): 2866
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 740
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: 2-Stage multi-leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.14
• Tires
• Front Tire Order Code: XHH
• Rear Tire Order Code: YHH
• Spare Tire Order Code: ZHH
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid Inboard Rail
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 155
• Length, Overall w/rear bumper (in): 244.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 82.0
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.3
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 7.7
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Step Up Height - Front (in): 19.3
• Step Up Height - Side (in): 20.0
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 173.6
• Cargo Area Length @ Floor to Seat 1 (in): 147.8
• Cargo Area Length @ Floor to Seat 2 (in): 109.4
• Cargo Area Length @ Floor to Seat 3 (in): 77.5
• Cargo Area Length @ Floor to Seat 4 (in): 45.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume to Seat 1 (ft³): 237.3
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Second Head Room (in): 38.5
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 68.9
• Second Hip Room (in): 66.0
• Third Head Room (in): 38.6
• Third Leg Room (in): 37.6
• Third Shoulder Room (in): 63.5
• Third Hip Room (in): 64.4
• Fourth Head Room (in): 38.1
• Fourth Leg Room (in): 39.8
• Fourth Shoulder Room (in): 68.3
• Fourth Hip Room (in): 59.6
• Summary

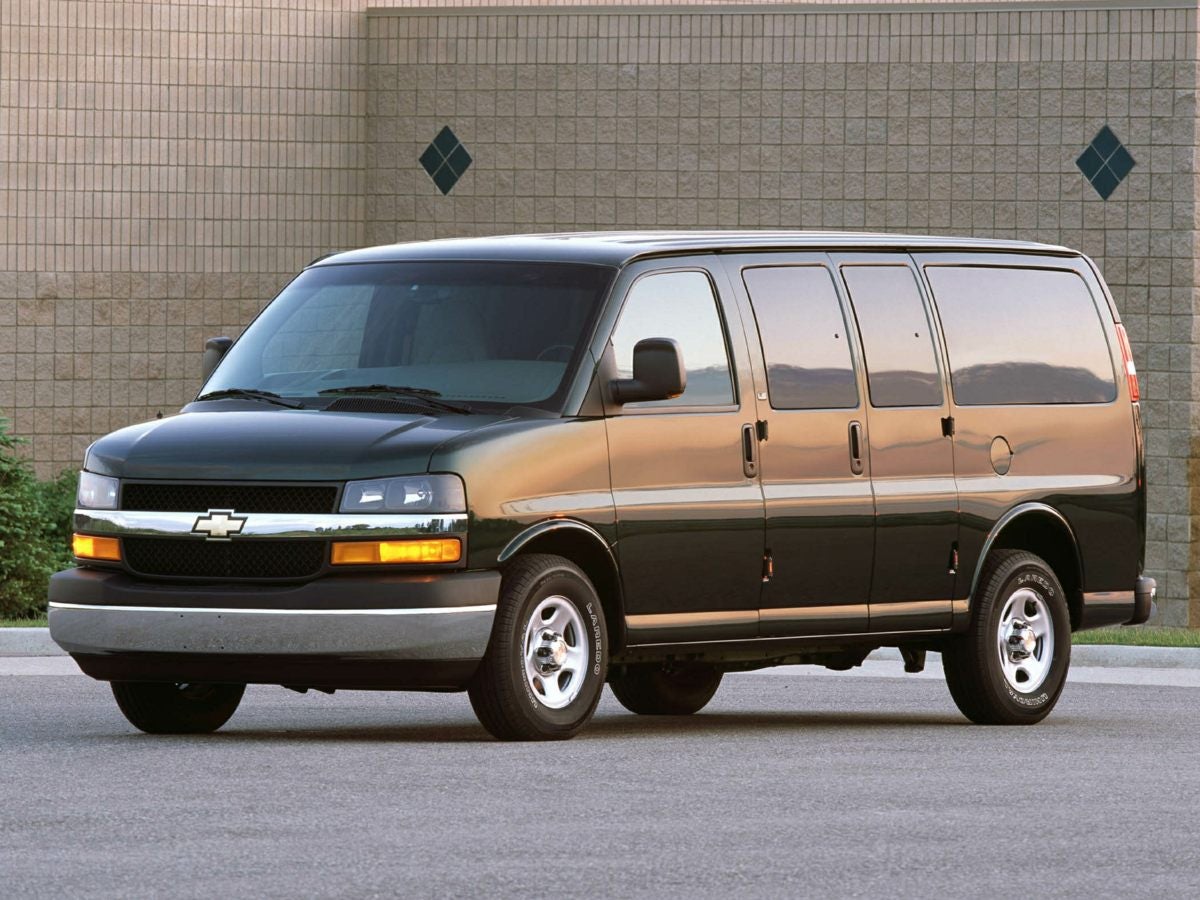

• Vehicle Name: Chevrolet Express Passenger
• Body Style: 3500 155" WB
• Body Code: ZW9
